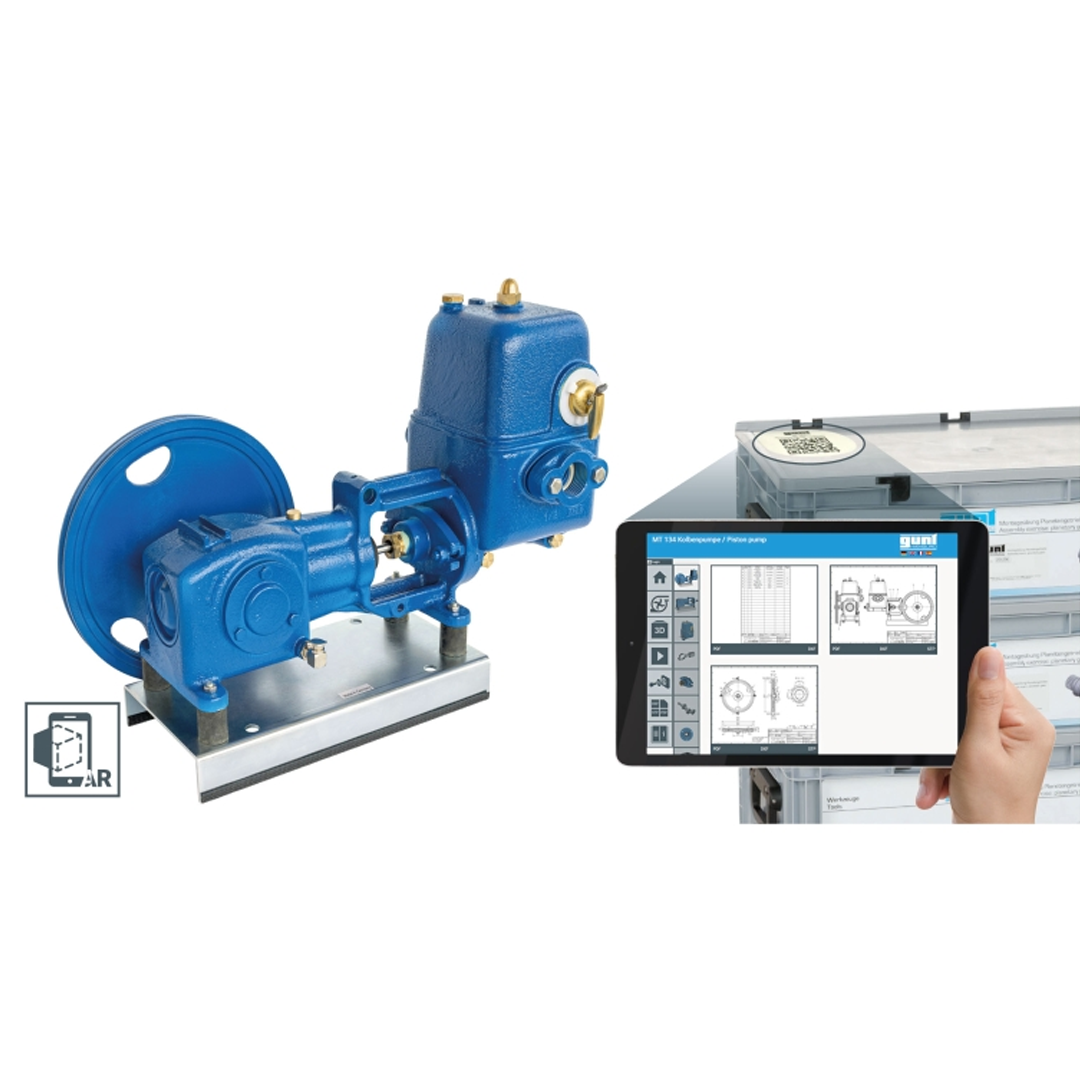

Mounting kit: plunger pump
Mounting kit: plunger pump
SKU:MT134
Tiempo de despacho para este producto
Santiago:
Regiones:
Regiones extremas:
Región de Magallanes:
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur fringilla sapien risus, id semper tellus porta eu. Sed semper ante vel tellus pharetra, quis venenatis lorem elementum.
Descripción
Plunger pumps are a type of positive displacement pump that works alternately with normal suction. The pump we are looking at is a double-acting plunger pump. This means that each movement of the plunger performs both suction and discharge. The MT 134 kit is part of the GUNT Practice Line, which is specifically designed for training in vocational schools and company training centres. The relationship between theory and practice is very close. Assembly and disassembly are simple and can be carried out with basic tools included in the package. In addition, the plunger seats are designed so that the entire process can be done manually.
Characteristics
- Plunger pump
Max flow rate: 1000L/h
Max lifting height: 40m
Max power consumption: 250W
V-belt drive, engine speed: 1450min-1
Suction/discharge connection: 1” / 1”
- Dimensions and weights
Lxwxh: 600x400x1030mm (storage system)
Weight: approx. 30kg
