Gunt Hamburg

Coupling kit

Coupling kit

PT500.13

Tiempo de despacho: ?

Tiempo de despacho para este producto

Santiago:

Regiones:

Regiones extremas:

Región de Magallanes:

Descripción

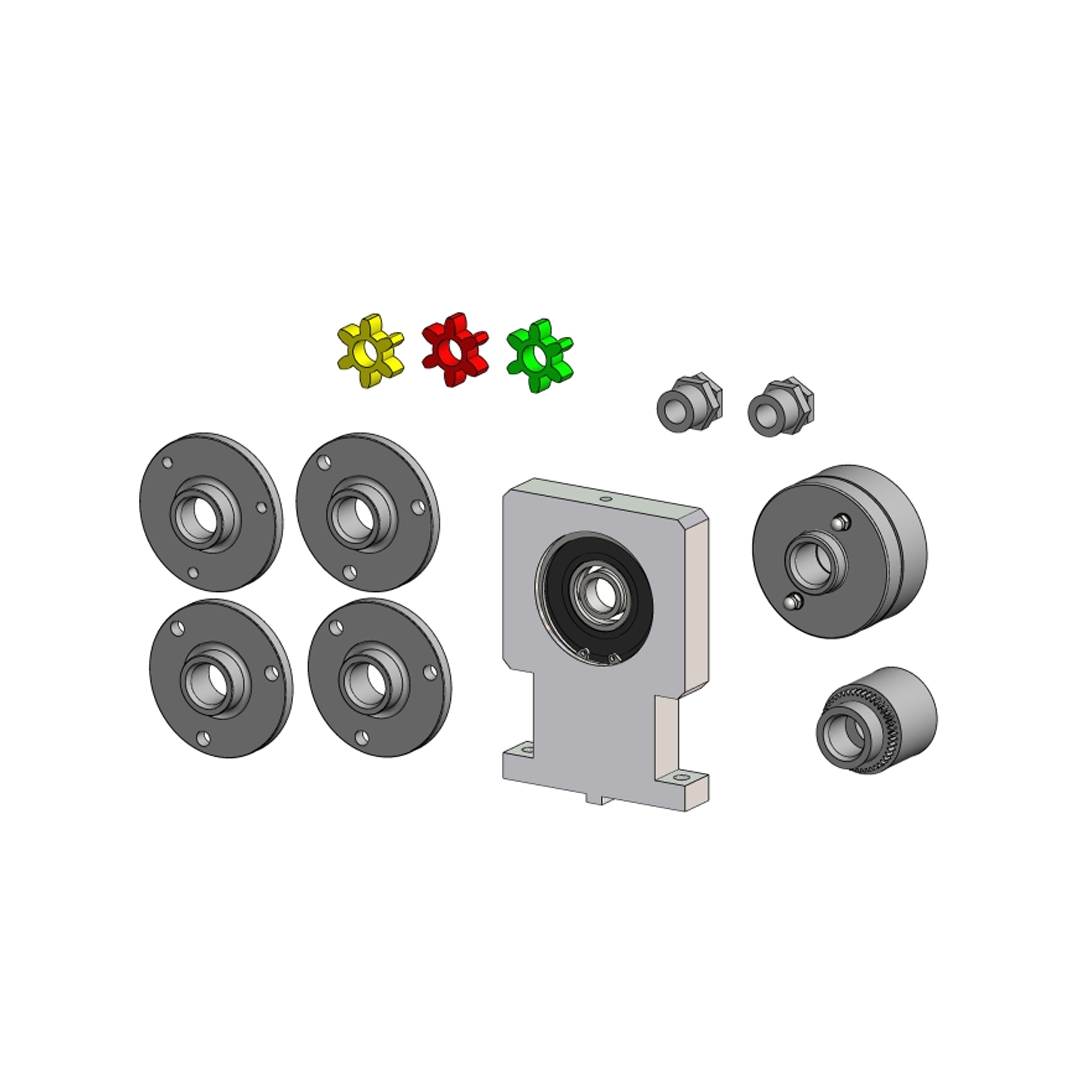

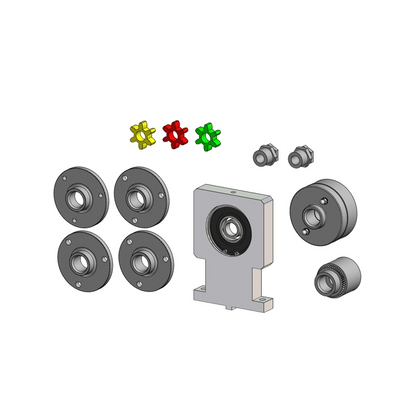

The PT 500.13 kit can be used to simulate various defects in order to study their impact on vibration behaviour. In addition, the properties of different types of couplings can be compared. Curved tooth, pin, flange and claw coupling types are studied. The couplings are mounted between the motor and the shaft. The PT 500.05 braking and loading equipment is required to study couplings under load.

Characteristics

  • Bolt coupling
  • 1 bolt without eccentricity
  • 1 bolt with eccentricity
  • Bolt eccentricity: 1mm
  • Max pitch error: 180° ±1.909°
  • Stars for claw coupling
  • 98 Shore A (red)
  • 92 Shore A (yellow)
  • 64 Shore D (green)
  • 80 Shore A (blue, included in PT 500)
  • Flange coupling
  • Eccentricity defect (off-center): 0.2mm
  • Oscillation defect: 0.4 ±0.1mm
  • Dimensions and weights
  • Lxwxh: 400x300x170mm (storage system)
  • Weight: approx. 6kg
