Side channel pump
Side channel pump
SKU:HL962.03
Tiempo de despacho para este producto
Santiago:
Regiones:
Regiones extremas:
Región de Magallanes:
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur fringilla sapien risus, id semper tellus porta eu. Sed semper ante vel tellus pharetra, quis venenatis lorem elementum.
Descripción

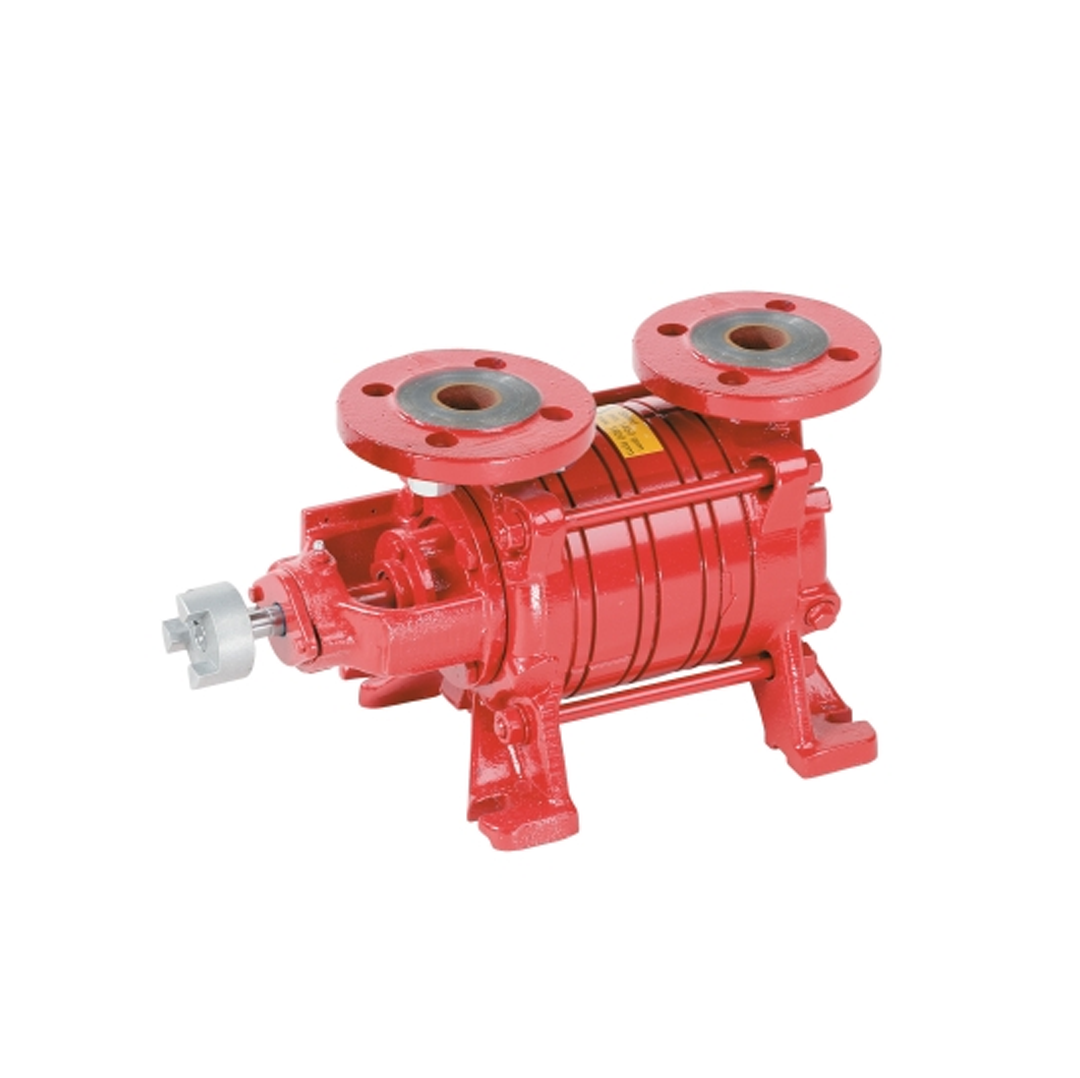

Understood. Side channel pumps are widely used self-priming centrifugal pumps. Despite their low flow rate, they can reach relatively high pressures. These pumps are capable of sucking and transporting liquids containing gases. In addition, they can be started even if there is no liquid column in the suction line. The side channel stage removes air from the suction line and creates the necessary vacuum to suck in the liquid. In this case, we are using a three-stage side channel pump. The drive and water supply are carried out via the HL 962 test bench.
Characteristics
- Side Channel Pump:
3 stages
Max flow rate: 4.5m3/h
Max lifting height: 122m
Power consumption: 3kw
Nominal number of revolutions: 1450min-1
Max. number of revolutions: 1800min-1
- Connection flange:
Discharge side: DN32
Suction side: DN50
- Materials:
Case: grey cast iron
Shaft: Stainless steel
Dimensions and weights
Lxwxh: 470x220x240mm
Weight: approx. 30kg
