Descripción

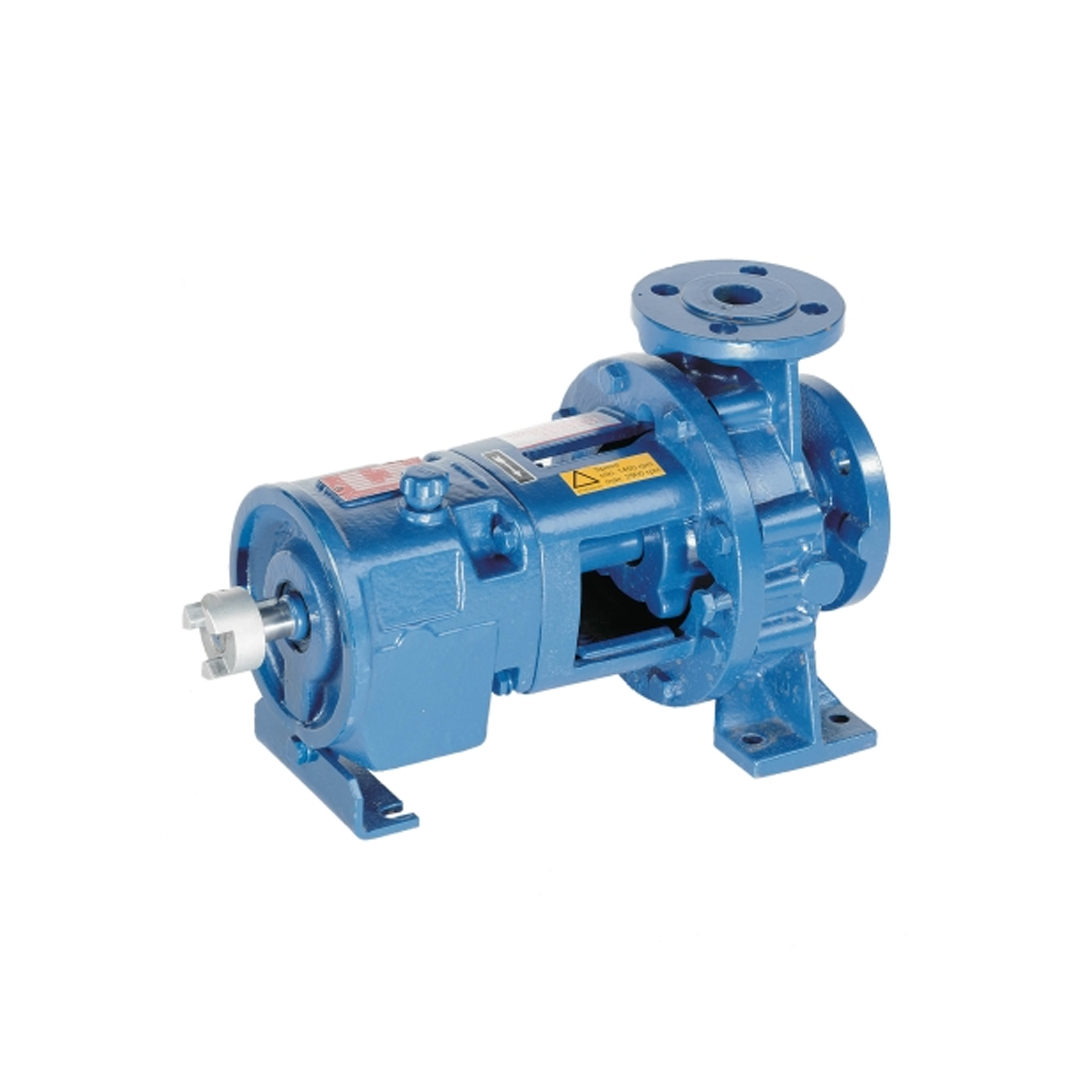

The standard pump is a single-stage volute casing pump designed specifically for industrial process applications. Its construction facilitates quick and easy replacement of worn parts. The volute casing is the most common configuration for single-stage pumps, and its design is carefully matched to the pump flow to achieve the best performance. In addition, it complies with ISO 2858 and ISO 5199 standards for hydraulic design and connection dimensions.
Characteristics
- Centrifugal pump
(reference number of revolutions: 1450min-1)
Max flow rate: 9.5m3/h,
Max. lifting height: 9.5m
Power consumption: 0.5kw
- Connection flange
Discharge side: DN32
Suction side: DN50
- Materials
Case, impeller: grey cast iron
Shaft: Stainless steel
Dimensions and weights
Lxwxh: 570x240x300mm
Weight: approx. 43kg
