Descripción

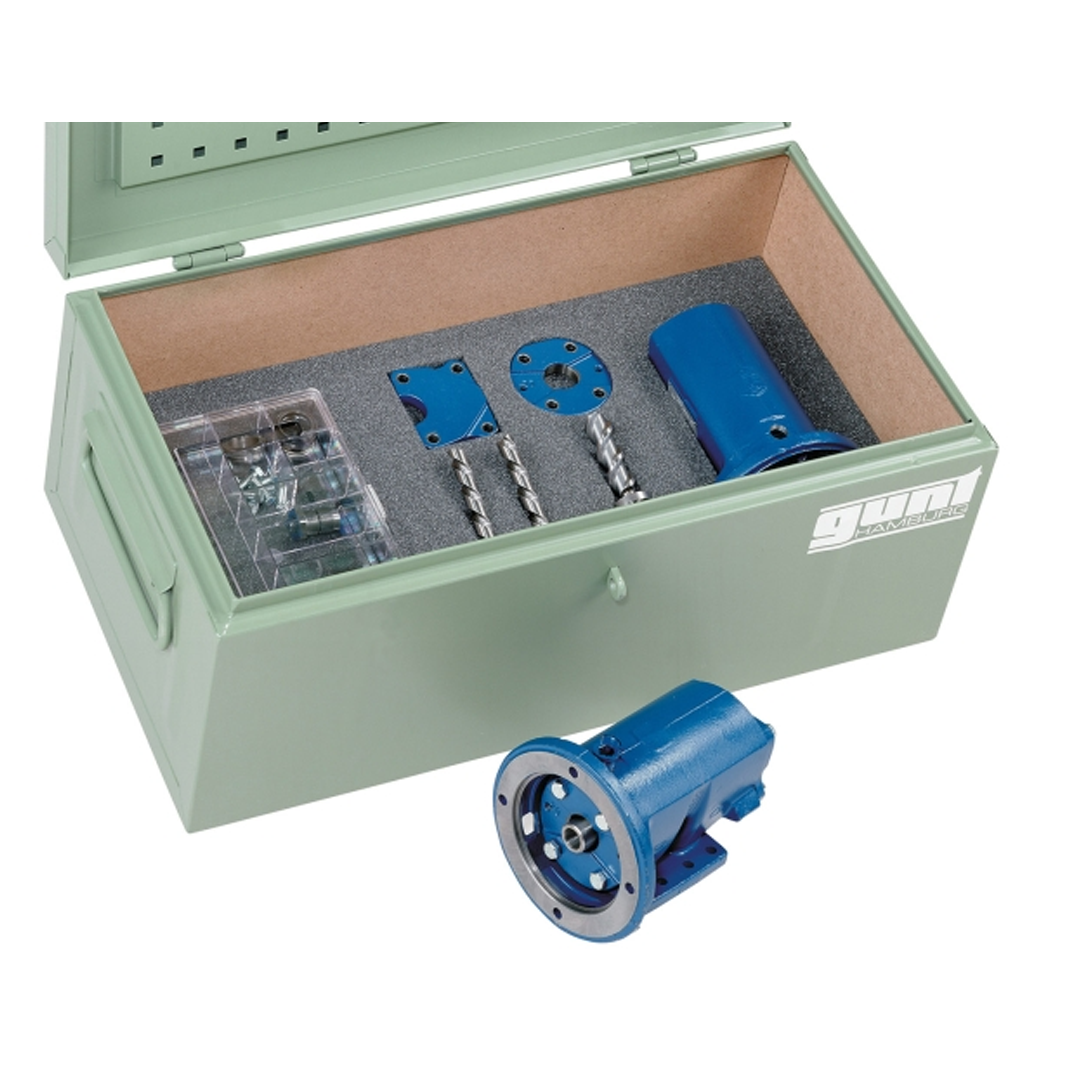

Screw pumps are a type of positive displacement pump that operates rotary with normal suction. They use two discharge screws to transport the fluid in an axial direction. This pump can handle different types of fluids, such as non-aggressive liquids with lubricating properties and a viscosity between 2 and 1500 mm²/s. Typical applications include lubrication of diesel engines, gears, gas turbines, steam and water, as well as circulation for cooling and filtration in large machines and hydraulic systems. The MT 182 kit is part of the GUNT Practice Line and is designed for assembly, maintenance and repair practices in technical schools and corporate training centres. It is ideal for complete professional-oriented projects, encouraging both individual and small group work.
Characteristics
- Three screw pump
- Power consumption: max. 1350W
- Max. lifting height: 12 bar
- Displacement: 13.9cm3/turn of the screw
- Max. number of revolutions: 3600min-1
- Suction connection: DN25
- Discharge connection: DN25
- Grey cast iron case
- Dimensions and weights
Lxwxh: 690x360x312mm (tool box)
Weight: approx. 50kg
